Modular laboratory analyzers

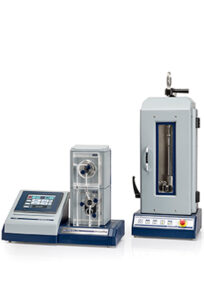

LP10

Alcohol / Original-Real Extract / CO2 / O2

LP20

CO2 / O2

beer laboratory analyzer
LP20

Alcohol / Real Extracts / Original Extracts

LABORATORY BEER

Modular laboratory analyzers designed for measuring a variety of quality control parameters in the brewing industry.

ALCOHOL / ORIGINAL EXTRACT / REAL EXTRACT / CO2 / O2

The LP series is a complete range of optical sensors studied for the beer and wine industry. The design is modular: the system can be composed of different analysis modules based on the needs and they are all handled by a single control panel. It is possible to upgrade the initial configuration with additional analysis modules at any time.

BENEFITS
DOWNLOADS
CO2 / O2

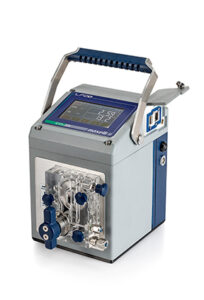

Thanks to its portability features, the LP20 can be used either in the laboratory or at line for measuring CO2 and Oxygen of any beer and wine. For measuring the CO2 the equipment uses the ATR infrared. For measuring the dissolved oxygen, it uses an optical sensor. When used in the laboratory, the LP20 can be easily connected to the Maselli Automatic Sampler SL01 for handling all types of containers (can, bottle, PET, etc.).

BENEFITS
DOWNLOADS
ALCOHOL / REAL EXTRACTS / ORIGINAL EXTRACTS

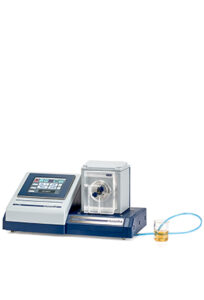

Thanks to its portability features, the LP20 can be used either in the laboratory or at line for measuring Alcohol of any beer and wine. For measuring the Alcohol, it uses the combination of refractive index and sound velocity. When used in the laboratory, the LP20 can be easily connected to the Maselli Automatic Sampler SL01 for handling all types of containers (can, bottle, PET, etc.).

BENEFITS
DOWNLOADS

SERVICE REQUEST

Send a request: Maselli Technical Center is there to assist you solving any technical issue your equipment is facing.
