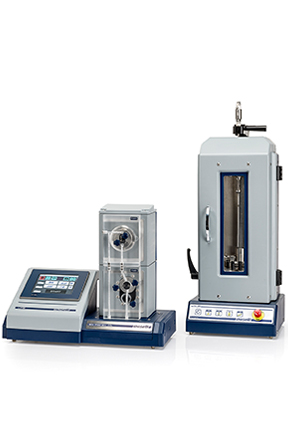

LP10 – Laboratory Package for Beer
ALCOHOL / ORIGINAL EXTRACT / REAL EXTRACT / CO2 / O2
DESCRIPTION
The LP series is a complete range of optical sensors studied for the beer and wine industry. The design is modular: the system can be composed of different analysis modules based on the needs and they are all handled by a single control panel. It is possible to upgrade the initial configuration with additional analysis modules at any time. Being used as bench top analyzer, the LP10 includes a semi-automatic sampler for picking the beverage samples from all types of containers. All the operations are easy and do not require skilled technicians: the design does not need maintenance being based on optical technology. The annual maintenance is recommended to perform the analyzer calibration according to traceable standards.
BENEFITS
DOWNLOADS
CONTACT US
Technical features
Technical features
| Application | Measurements of quality control samples in the laboratory in the beer and wine industry. |
| Alcohol | |
| Measurements Limits: | 0…13% w/w (0…16.5 v/v) |
| Accuracy: | +/- 0.02 w/w |
| Real Extracts | |
| Measurements Limits | 0…30% Ew |
| Accuracy | +/- 0.05 (+/-0.01) Ew |
| Original Extracts | |
| Measurements Limits | 0…30° Plato |
| Accuracy | +/- 0.05 (+/-0.01)v°Plato |
| CO2 Measurement | |
| Measurements Limits: | 0…6 v/v (0…12 g/l) |
| Accuracy: | 0.025 v/v (0.05 g/l) |
| Measurement scale: | “v/v (Gas/Vol)” or “g/l” |
| O2 Measurement | |
| Low Range | |
| Measurements Limits: | 0.0…2,000 ppb |
| Accuracy: | +/- 1ppb |
| Measurement Scale | ppb, ppm, % |
| High Range | |
| Measurement limits: | 4ppb…25ppm |
| Accuracy: | +/- 7ppb |
| Measurement Scale | Ppb, ppm, % |
