LR05 – Lab Refractometer

BRIX / nD / HFCS / USER SCALE

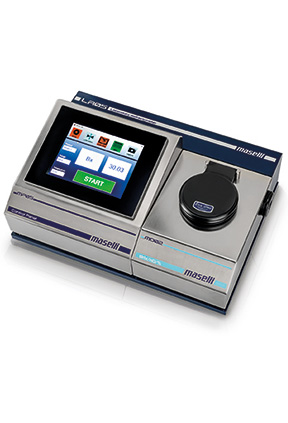

Laboratory Refractometer LR05

DESCRIPTION

The LR05 laboratory refractometer has been designed to be accurate, robust andeasy to use. The project has been developed using state of the art technology, which guarantee a high level of precision and reliability, such as the sapphire prism, the LED long-life light source and high-resolution digital optical CCD sensor. The intuitive software interface is available on a wide 6.5 inches touchscreen panel PC which allows easy interface by means of USB ports (ethernet available). The LR05 unit measures the sample refractive index calculating its concentration that may be displayed in different ranges: Brix, nD, % concentration. The LR05 may be delivered in 3 different models: standard, high and super accuracy. All the measurements are automatically temperature compensated: an optional flow cell is available for corrosive products. Main application fields are within industrial laboratories in the food, chemical, pharmaceutical and textile sectors.

BENEFITS
DOWNLOADS
CONTACT US
Application Measurements of liquid products in laboratories in the Food, Chemical, Textile, Petrochemical industries, wineries, etc.
LR05 SA (Super Accuracy)
Measurements Limits: 1.3271 … 1.5318 nD (0…95Bx)
Accuracy: +/- 0.00002 nD (+/-0.01Bx)
Measurement Scales: nD, BRIX, HFCS42 and HFCS55 with adjustable Zero
value and 10 “USER” scales totally configurable.
Product Temperature: 5…60 °C with automatic compensation of measured
Temperature. Peltier Cell available.
LR05 HA (High Accuracy)
Measurements Limits 1.3271 … 1.5318 nD (0…95Bx)
Accuracy +/- 0.00005 nD (+/-0.03Bx)
Measurement Scales nD, BRIX, HFCS42 and HFCS55 with adjustable Zero value and 10 “USER” scales totally configurable
Product Temperature 5…60 °C with automatic compensation of measured
Temperature. Peltier Cell available
LR05 ST (Standard Accuracy)
Measurements Limits 1.3271 … 1.5318 nD (0…95Bx)
Accuracy +/- 0.00007 nD (+/-0.05Bx)
Measurement Scales nD, BRIX, HFCS42 and HFCS55 with adjustable Zero
value and 1 “USER” scale totally configurable
Product Temperature 5…45 °C with automatic compensation of measured
temperature
